Description

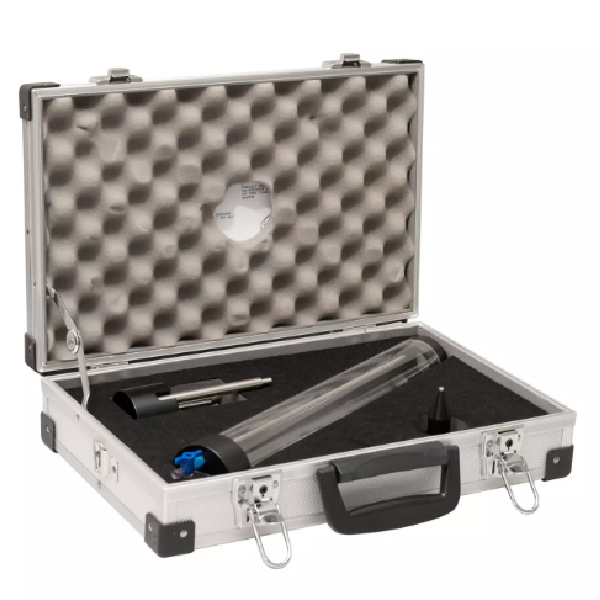

Field Calibration Device FCD checks rain gauges in the field for accuracy. The portable lightweight device effectively enables field technicians to run functional tests and verifications of any rain gauge in the field. The use of FCD saves time and money, because the tipping bucket rain gauges can remain fixed in their location without the need for dismantling and transport and with very short downtimes for calibration only.
FCD checks whether a rain gauge is providing accurate readings: It discharges a certain volume of water into the rain gauge collector. Then, the number of tips has to be counted and checked with the calibration specifications (included). The tips generated when emptying the FCD water volume can be counted

• manually by listening for the tips,
• by a data logger, and
• most accurate and comfortable: by means of connecting the CMCbt BlueTooth converter (optional) and using the FCD-App (free download) on an Android mobile device
